(The optional Professional Demodulator is shown, Wide-FM Option is installed.)

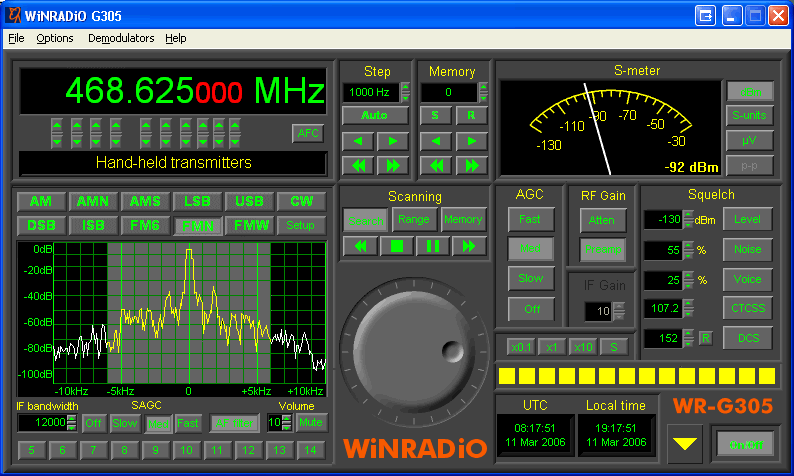

In addition to the usual conventional displays and controls, the WiNRADiO G305 Receiver Front Panel contains some innovations, such as a multitude of tuning options (the control bar on the right above the clocks), three scanning modes, automatic step size selection, a truly remarkable S-meter which can show values in S-units, dBm or microvolts, five types of squelch, and other facilities. There are AGC speeds to select from, and the AGC can be also entirely disabled and replaced with manual IF gain control.

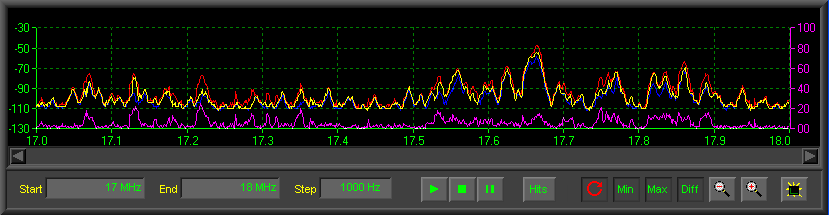

When you click on the yellow triangle button next to the Power On/Off switch at bottom right, the Spectrum Scope (which can also work as a Hit Counter) will slide out at the bottom of the control panel:

And finally, at bottom-left, there is a window containing the all-important G305 Demodulator.

Specifications are subject to change without notice due to continuous product improvement.
